LONGSE WiFi Smart Kit CS200W, 2MP, 4 Cameras με 3 Sensors, TVI

LONGSE WiFi Smart Kit CS200W, 2MP, 4 Cameras με 3 Sensors, TVI :

Τεχνική Υποστήριξη:
Η Data Media παρέχει online τεχνική υποστήριξη για το συγκεκριμένο προϊόν, στο τηλέφωνο 2394020204 (εσωτερικό 331)

Νέο επαναστατικό SMART NVR  WIFI KIT  από την LONGSE  με την μοναδική τεχνολογία που ενσωματώνει  πάνω στις κάμερες 3 διαφορετικούς  σένσορες, διαθέτει 2 κάμερες με ανιχνευτή κίνησης (PIR) 1 κάμερα με ανιχνευτή αεριών (Gas Detector) και 1 κάμερα με ανιχνευτή θορύβου (Sound Alarm).

ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΣΚΛΗΡΟ ΔΙΣΚΟ!

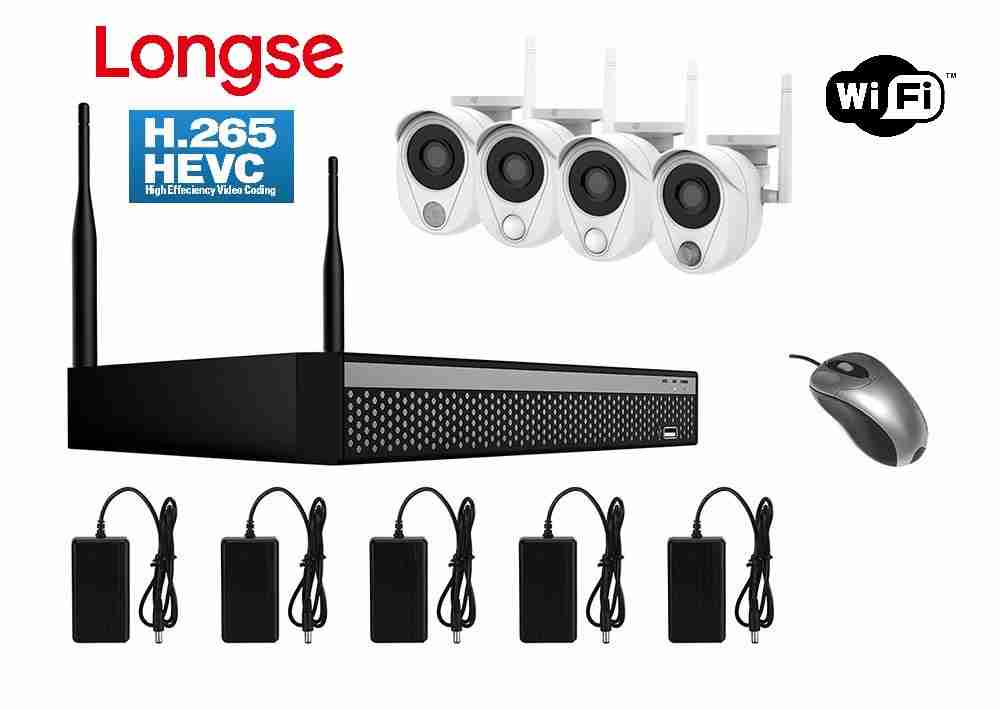

-2MP 4CH Smart WIFI Kit Distance 300m Max.
-1x 4CH WIFI NVR H.265/H.265+
-4x 2MP Indoor Bullet IP Camera IR 30m
-4x DC12V/0.5A Power Adapter for WIFI IP Camera
-1x DC12V/2A Power Adapter for WIFI NVR
-1x USB Mouse

Τεχνικά Χαρακτηριστικά:
NVR:1x CS-NVR3604DEW (Recorder)
Camera: 2 x CS-EP2W (With PIR Detector), 1 x CS-EG2W (With Gas Detector), 1 x CS-ES2W (With Sound Alarm).
WIFI Range: No Obstacles 300m Max
Mouse: 1xUSB 2.0 Mouse
Adaptor: 1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Camera Model: CS-EP2W, CS-EG2W, CS-ES2W
Image Sensor: 1/3″ SONY Low Illumination  CMOS Sensor
Resolution: 2MP 1080P
Effective Pixels: 1920(H)x1080(V)
Compression : H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV System: PAL/NTSC
Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio: ? 52dB
Scanning System: Progressive
Video Output: Network
Reset Button: Optional
Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels: 3M Pixels
Infrared LED: 42µ x 2PCS  Optional
Infrared Distance: 30M
IR Status/Power On: Auto Control
Ethernet: RJ-45 (10/100Base-T)
Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF: Support ONVIF 2.4
P2P: Yes, Support QR Code
Video Delay: 0.3S (Within the Lan)
Main Stream 1: 1920×1080 @1-20fps(default resolution:1920×1080/frame rate:15fps/bit rate:2Mbps)
Main Stream 2: 1280×720 @ 20fps
Sub Stream 1: 720×480 @1-20fps(default frame rate:15fps/bit rate:0.5Mbps)
Tri Stream: 354×288 @(1-20)fps(default frame rate:15fps)
IE Brower : IE8-11, Google Chrome(under version 45), Firefox(under version 53), Mac Safari
Smart Phone: iPhone, iPad, Android, Android Pad
Antena: 3dbi
Wi-Fi/ Wi-F Range: (IEEE802.11b/g/n) No obstacles 300m Max.
Day/Night: Color/B&W (IR-CUT )
Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Defog  Mode: Yes
BLC: Yes
WDR YES
Motion Detection: Support
Smart Alarm: PIR Detecto(CS-EP2W), Gas Detector(CS-EG2W), Sound Alarm(With CS-ES2W)
Privacy  Masking: 3 Rectangular Zone
Recording Mode: NVR/NAS/VMS/Web
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands, Czech
Housing: Plastic
Anti-cut Bracket: Yes
IR Cut Filter: yes
Housing Plastic
Anti-cut Bracket: Yes
IR Cut Filter: Yes
Operation Temperature: -10C~+50C RH95% Max
Storage Temperature -20C ~ +60C RH95% Max
Power Source: DC12V±10%, 500mA
Main Processor: ARM Cortex A7 Quad-core Processor
Operating System: Embedded LINUX
Input: 4CH(2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HD
Output 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression standard: G711u, G711a, G726
Motion Detection: 4 Channel, MD Zones: 396 (22×18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
HD1: Resolution: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA: Resolution:1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Display Split: 4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
Digital Zoom: Yes
OSD: Camera Title, Time, Recording, Motion Detection
Video Compression: H.264/H.265/H.264+/H.265+
Resolution: 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)
Record Rate: PAL:5MP@ 4x25fp,4MP@ 4x25fp,3MP@ 4x25fp,1080P@ 4x25fp, 960P@ 4x25fp,720P@ 4x25fp, D1@ 4x25fp
NTSC: 5MP@ 4x30fp,4MP@ 4x30fp,3MP@ 4x30fp,1080P@ 4x30fp, 960P@ 4x30fp, 720P@ 4x30fp, D1@ 4x30fp.
Record Mode: ManualTimerMotion DetectionAlarm
Local Sync Playback: 1CH 5MP @ 30fps, 1CH 4MP@ 30fps, 2CH 3M@ 30fps, 4CH 1080P@ 20fps, 4CH 960P@ 30fps, 4CH 720P@ 30fps
Decode Capability: 4CH 1080P@ 20fps
Remote Sync Playback: Yes
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop,  Fast Play, Digital Zoom
Backup Mode: Network/USB(With usb hub)
Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth: 28MB
Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version: Support Onvif 2.4
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support  Windows 7/Windows 8/Windows 10
Cloud Support(P2P): Yes
Smart Phone: iPhone, iPad, Android, Android Pad
WIFI: Support, WIFI Range: No Obstacles 300m Max
Interface Type: 1 SATA Hard Disk Interface (2.5″/3.5″ SATA)
Capacity: Up to 8TB capacity
Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek”
USB Interface: 1 USB 2.0 Interfaces
Power Supply: DC12V/2A
Working Environment: -10~55C/10~90%
