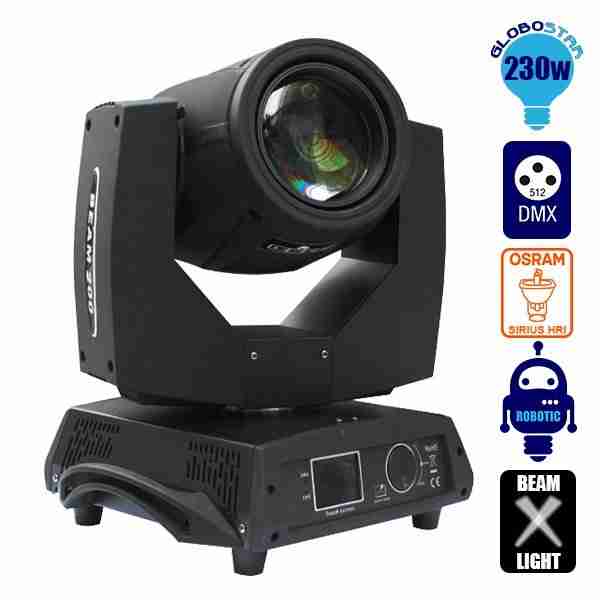

Κινούμενη Ρομποτική Κεφαλή BEAM Osram 7R 230 Watt GloboStar 51115

Technical Paremeters:

Voltage
100-240V, 50HZ-60HZ

Total Rated power
350W

Lamp
Osram 7R HQ – 98000 Lumen @ 10M

Signal
DMX 512

Channel
16CH/20CH

Motor
11pcs

Coling system
4 fans+ 1 blower

Lens
Yiling optical lens ( 3 pcs)

Dimming
0-100%

Strobe
double strobe ( 1-9 times/second)

Size
40.5*33*45CM

Packing size
58*42*42CM

Flightcase size( 1 for 2)
75*47*75CM

N.W
18.5kg

G.W( Carton)
21KG

G.W( flightcase)
71KG

The channels:

CHANNEL

CHANNEL MODE

STANARD

VECTOR

1

COLOR WHEEL

COLOR WHEEL

2

STOP/STROBR

STOP/STROBE

3

DIMMER

DIMMER

4

STATIC GOBO CHANGE

STATIC GOBO CHANGE

5

PRISM INSERTION

PRISM INSERTION

6

PRISM ROTATION

PRISM ROTATION

7

MACRO

MACRO

8

FROST

FROST

9

FOCUS

FOCUS

10

PAN

PAN

11

PAN FINE

PAN FINE

12

TILT

TILT

13

TILT FINE

TILT FINE

14

PAN AND TILT SPEED

PAN AND TILT SPEED

15

RESET

RESET

16

LAMP CONTROL

LAMP CONTROL

17

BLANK

18

COLOR SPEED

19

DIMMER, BEAM AND FROST SPEED

20

GOBO SPEED

Description:

230W Moving Head Beam Light using advanced design and processing technology, cast plastic casing with nice outlook, fully reflects the product’s unique personality, the use of Osram 7R high-brightness lamp which features high brightness and stability.light mixing effect, particularly suitable for disco , television, dance halls, disco and nightclubs, and theater and other occasions.

230W Moving Head Beam Light’s blending effect, the current of each lamp beads in strict accordance with the rated voltage and current control, It’s available independently controlled.
